Products > Laminar Air Flow Bench / Work Stations

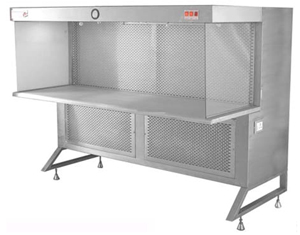

Laminar Air Flow Bench

Sr. No. Items Description
1
MOC
SS304, 316, GI powder coated
2
Pre-Filter
Air Micron Make EU 4 rating with suitable size having efficiency 90% down to 10 micron.
3
Final Hepa Filter
HEPA Filter having EU 13 or EU14 rating with suitable size having efficiency 99.997& down to 0.3 micron.
4
Motor Blower Assembly
Statically & Dynamically balanced with suitable rating and size. (Induction motor with centrifugal blower) A Mounting unique spring suspension system to take care of vibration and noise.
5
Mounting
Unique Spring Suspension Systems to take care of Vibration and Noise
6
Working Table
S.S. 304 with Due Reinforcement for Better Performance and Stability.
7
Side Panel Accessory No
Glass Side Panels
8
Pressure Gauge
DWYER, USA Minihelic Differential Pressure Gauge : 01 No
9
Air Cleanliness
Class ISO - 5 (as per ISO - 14644-1).
10
Air Flow Rate
0.45 0.05mps.
11
Vibration Level
Minimum
12
On-off Switch
Feather Touch on off Switch for blower-motor, Lamp & UV lamp etc.

Model of the Horizontal Laminar Air Flow clean air work station as following:

HORIZONTAL LAMINAR FLOW CLEAN AIR WORKSTATIONS
Model
Work space dimensions
Overall dimensions
w
d
h
W
D
H
2202
610
610
610
710
1070
1450
2203
910
610
610
1015
1070
1450
2204
1220
610
610
1320
1070
1450
2206
1830
610
610
1930
1070
1450
